AR550 III+ Multi-Curve Steel Body Armor

From: $89.95
Clear

11×14 ships in approximately 1-2 business days
8×10 and 10×12 ships in approximately 5-7 business days

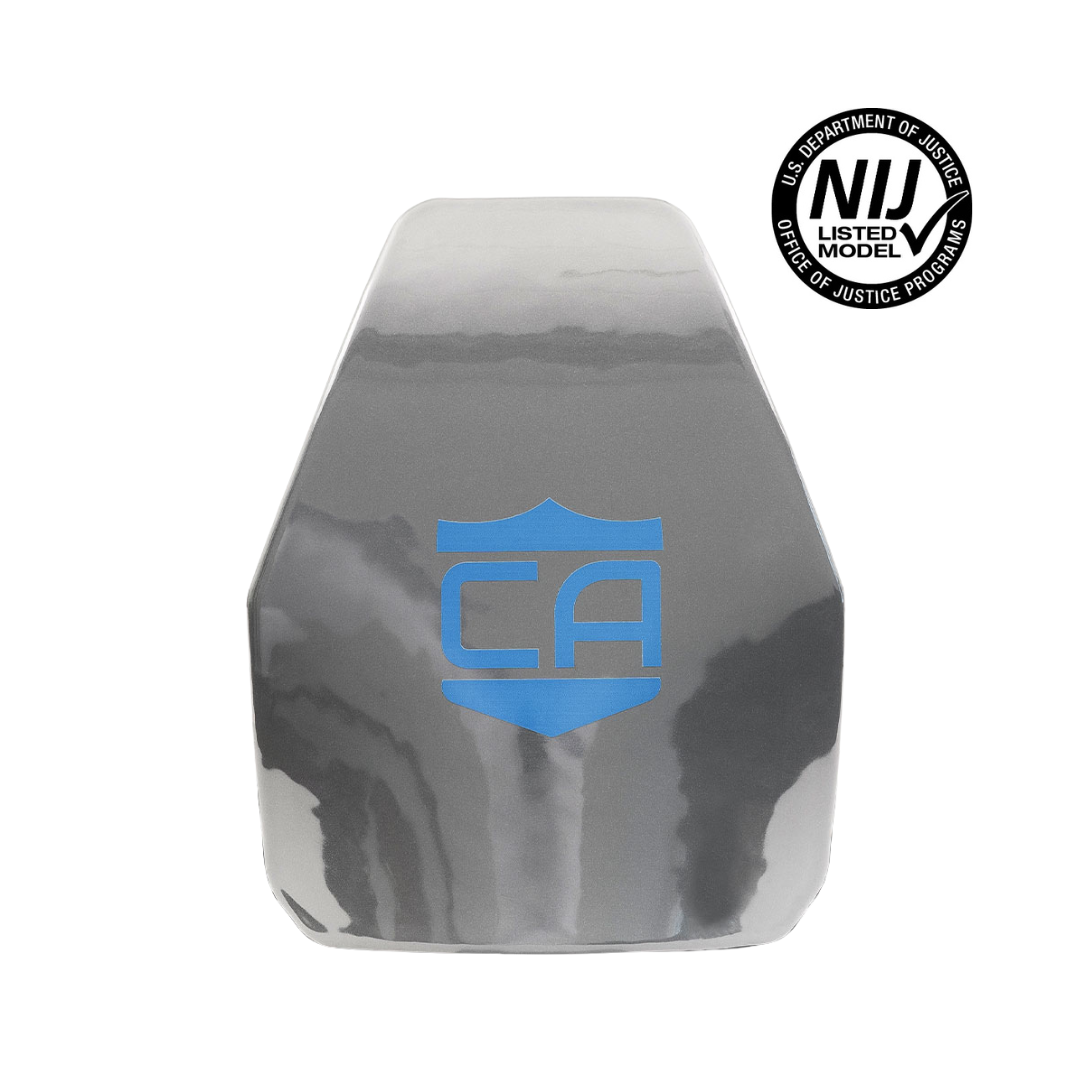

  • AR550 Level III+ Steel Body Armor Panel (available in 8×10, 10×12 and 11×14)
  • Sold in singles
  • Ergonomic Multi-Curve design at no extra cost
  • Shooters Cut
  • Rated and tested to: NIJ STD-0101.06 Level III and also special threats listed in NIJ STD-0101.07 Draft Rifle 2
  • Available in Standard Coating or we highly recommend Bullet Liner™ Anti-Spall Coating
  • Proudly made in the Louisville, KY U.S.A

Technical Specs








SKU N/A Category

We have gone above and beyond to bring you steel body armor of a HIGHER CALIBER.

This can be seen with our bend process, our fragmentation coating and our finishing details. This was the material that we started from and have the most experience with. We’ve seen it, done it, we’ve improved it.

Steel Body Armor provides great protection that can stop multiple projectile hits. We have been working with different levels of abrasion resistant (AR) ballistic steel for years and have not found a better product than our AR550 Steel Body Armor Plates. This armor is rated at a level III+ as it can defeat special threats like M855 rounds.

All of our steel plates come in one ergonomic curve option. We have worked with LE, and first responders to design a curve that you can be comfortable wearing. We provide this at no additional cost. What is unique about the way that we bend our steel is important too. We have designed a press that creates a multi curve bend in ONE step. Why is this important? When you do multiple bends to achieve a multi curve, it puts extra strain on the plate which can weaken it. We have replicated the same curves that you have seen in multi curve ceramic armor for years.

Our aggressive Shooters Cut body armor plates shaves off weight while still providing enough coverage to protect your vital organs. Use our CaliberX™ Soft Armor Backers for even more protection and comfort.

Our standard plate comes coated to protect the plate from rust and the elements. One concern with Steel Armor is fragmentation containment. Some of that fragmentation is contained in the armor’s plate carrier, but there still is a risk of lethal shrapnel. We recommend our Caliber Anti-Spall add on. We have teamed up with our friends at Bullet Liner® to formulate an anti-spall coating specifically for our armor application. This addition to your steel plate gives you peace of mind when wearing steel armor.



Weights for Caliber Armor AR550 Steel Body Armor:

10 x 12 – 7lb 6oz Standard vs. 8lb 7 oz with Anti-Spall Coating

8 x 10 – 4lb 14.8 oz Standard vs. 5lb 14.8 oz with Anti-Spall Coating

11 x 14 – 8lb 13.3 oz Standard vs. 9lb 13.3 oz with Anti-Spall Coating



Hard Armor Fit Guide

NIJ STANDARD-0101.06

Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard- 0101.06 Level III and also tested for special threats listed in the new NIJ Standard- 0101.07 (Draft) Rifle 2.

MANUFACTURING TOLERANCES:

Thickness dimensions are +-1/8 in. Width and length dimensions are +0.00 to 0.25 in. All weights are +- 5%.

Additional information
Weight 1 lbs
Dimensions 20 × 30 × 40 in
Size

10" x 12", 11" x 14", 8" x 10"
